Roll Forming Machine

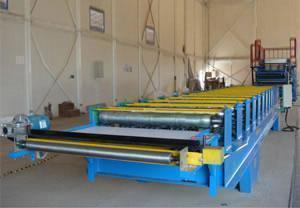

Introduction of Roll Forming Machine
Equipped with full-automatically PLC controlling system, this roll forming machine can produce many kinds of high quality and good-looking metal products, such as C/Z purlines, Wall and Roof panel, Glazed tile, Floor deck, Door frame, High-way Guard-rail, Down pipe and so on. It has beautiful models appearance and solid structure. we can design and manufacture any kind of Roll Forming Machine according to the customer’s specific requirements.

Main Configuration of Roll Forming Machine
•Un-coiler
•Leveling Organ
• Forming Machine
• Hydraulic Cutter
•PLC Control System
• Run-out Table

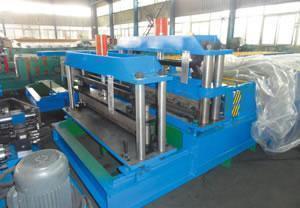

C and Z Roll Forming Machine

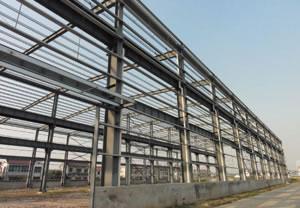

We can produce different specifications of C and Z purline by adjusting the position of the rollers. And each machine can produce 5 kinds of dimensions of products according to our customer’s specific requirements. The products are widely used in the steel construction project.

Technical Parameters of C and Z Roll Forming Machine

Item	C Purline Machine	Z Purline Machine
Total Power (kw)	15	15
Roll Station	18	16
Thickness (mm)	1~3	1~3
Speed (m/min)	3~8	3~8
Diameter of the Shaft (mm)	Ø80	Ø80
Controlling System	PLC	PLC
Weight (mt)	≈11	≈10
Overall Dimension (LxWxH)(m)	11x0.8x1.3	10x0.8x1.3

Layout of C and Z Roll Forming Machine:


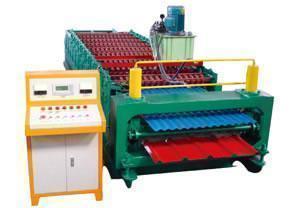

Glazed Tile Roll Forming Machine
We can produce many different kinds of metal tiles through different types of the Glazed Tile Roll Forming Machine. The tiles produced by this metal forming machine are widely used in the construction and building, such as the residential building, super market, cold house, factory and so on.


Technical Parameters of Glazed Tile Roll Forming Machine

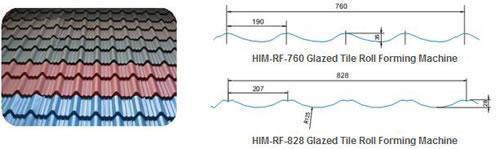

Item	HIM-RF-760	HIM-RF-828
Main Machine Power (kw)	7.5	7.5
Hydraulic Station Power (kw)	3	3
Roll Station	18	16
Thickness (mm)	0.4~0.6	0.4~0.6
Speed (m/min)	2~3	2~3
Uncoil Width (mm)	1250	1250
Controlling System	PLC	PLC
Total Weight (mt)	≈11	≈11
Overall Dimension (LxWxH)(m)	11.5x1.2x1.3	10.5x1.4x1.3
