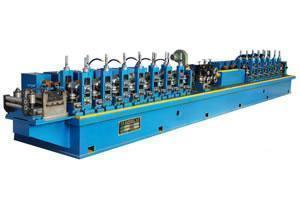

High Frequency Welding Pipe Production Line

Brief Introduction:
HiSuccess High Frequency Welding Pipe Production Line can be custom-design and custom-made to produce the steel pipes with different specifications and different shapes, including round tube, square tube and special shape tube.
Our welding pipe production line has many advantages, such as high performance, lower energy consumption, enhanced reliability, safety, great welding quality and so on.

Main Configuration of High Frequency Welding Pipe Production Line:

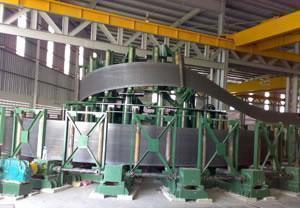

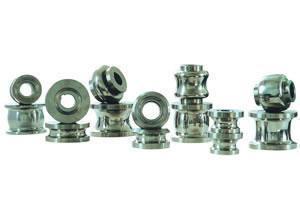

Uncoiler / Straightener / Flattener / Cutter and Butt Welder / Accumulator / Forming and Sizing Equipment / Welding Equipment / Cooling and Sizing System / Fixed Length Saw Machine / Receiving Table / Nondestructive Detector / Hydrostatic Testing Machine / Packing Equipment / High Frequency DC Drag / Hydraulic System / Electric Appliance

Main Parameter of High Frequency Welding Pipe Production Line:

Model	Pipe diameter (mm)	Thickness of pipe wall (mm)	Output speed (m/min)	Motor power (kw)	Power of HF welder (kw)
HIM-HP-20	Ø8-Ø20	0.5-1.5	20-80	22	60
HIM-HP-32	Ø12-Ø32	0.8-2.0	20-80	60	100
HIM-HP-50	Ø16-Ø50	1.0-3.0	20-80	75	200
HIM-HP-60	Ø16-Ø60	1.0-3.5	20-80	120	200
HIM-HP-76	Ø20-Ø76	1.0-3.5	20-80	132	200
HIM-HP-89	Ø32-Ø89	1.0-4.0	20-80	180	300
HIM-HP-114	Ø40-Ø114	1.0-5.0	20-70	200	400
HIM-HP-140	Ø48-Ø140	1.5-5.5	20-70	220	400
HIM-HP-165	Ø60-Ø165	2.0-6.0	20-70	270	400 or 600
HIM-HP-219	Ø76-Ø219	2.0-8.0	10-60	390	600 or 800
HIM-HP-273	Ø89-Ø273	3.0-9.0	10-50	440	800
HIM-HP-325	Ø114-Ø325	3.0-10.0	10-50	480	800
HIM-HP-355	Ø140-Ø355	3.0-10.5	10-50	560	800
HIM-HP-406	Ø165-Ø406	3.0-12.5	10-40	650	800 or 1000
HIM-HP-426	Ø219-Ø426	4.0-12.5	10-40	675	800 or 1000
HIM-HP-508	Ø219-Ø508	6.0-16.0	8-30	950	1200
HIM-HP-610	Ø325-Ø610	6.0-19.0	8-30	1000	1200

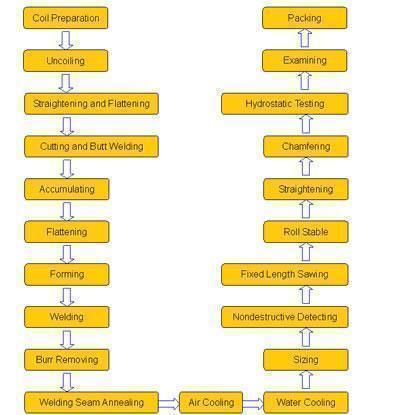

Flow Chart of High Frequency Welded Pipe Production Line
